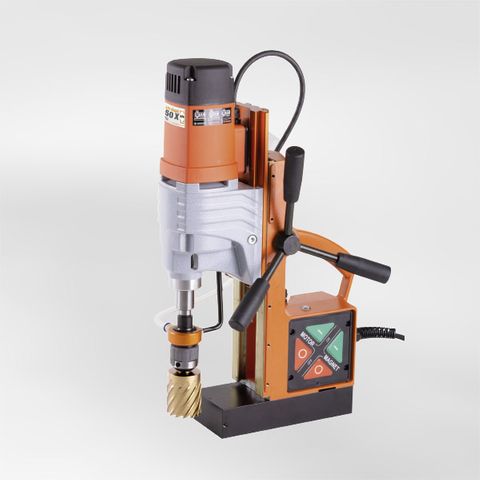

EM80 MAG BASED DRILL

EM80 MAG BASED DRILL
  • EM80 MAG BASED DRILL
    • EM80 MAG BASED DRILL
    • EM80 MAG BASED DRILL
    Application:
    In-Situ Drilling of Mild, Stainless and Hardened Steels
    Specifications:
    Magnetic Based Drill, Holes up to 80mm Diameter, 110mm Deep
    Stock Code:
    18625
    $6,346.10 (ex GST)

    FEATURES:
    • FOUR SPEED GEARBOX LOAD SPEED FOR OPTIMUM CUTTER LIFE
    (100RPM, 175RPM, 245RPM, 385RPM)
    • OIL BATH GEARBOX DESIGNED FOR CONTINUOUS CUTTING
    • HEIGHT ADJUSTABLE SLIDE - ALLOWS AJUSTMENT FOR USING STANDARD TWIST DRILLS IN ADAPTER CHUCK
    • MT3 ARBOR FOR FLEXIBILITY WHEN CHANGING BETWEEN DRILLING ATTACHMENTS
    • ADJUSTABLE MAGNETIC BASE FOR FLEXIBILITY IN DIFFICULT ACCESS SITUATIONS
    • SPRING LOADED GUIDE FOR SMOOTH EASY OPERATION
    • CAPACITY TO DRILL HOLES UP TO 80MM DIAMETER, 110MM DEEP


    SPECIFICATIONS:
    • Arbor: Morse Taper 3
    • Broach Drill Cutter Size: 12mm to 80mm / 20mm to 50mm (extra long 110mm cutters)
    • Cutting Depth: 50mm / 110mm
    • Twist Drill Capacity: up to 32mm with QR Chuck MT3 DIN 345 Direct
    • Countersinking / Counterboring: 10 - 55mm
    • Tapping Capacity: Up to M30 with attachment
    • Power: 1800W
    • Stroke: 190mm
    • Height Adjustment: 100mm
    • Magnetic Force: 4,000N/16,000N
    • Magnetic Base: 92x238mm, 30° adjustable right and left, 10mm front and back
    • Weight: 19.5KG
    • Manufactured in Germany
