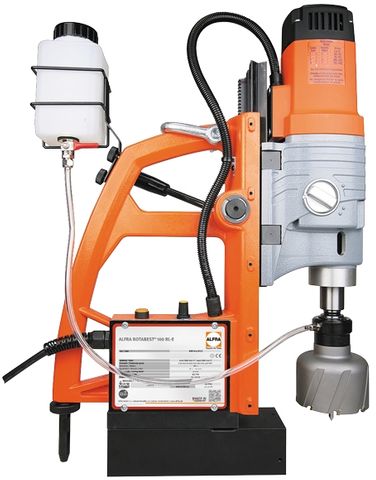

EXC 100 RL-E MAG BASED DRILL
-
Application:In-Situ Drilling and Tapping of Mild, Stainless and Hardened SteelsSpecifications:Magnetic Based Drill, Holes up to 100mm Diameter, 110mm DeepStock Code:18634$8,028.00 (ex GST)
FEATURES:
• FOUR STAGE VARIABLE DRIVE GEARBOX FOR OPTIMUM CUTTER LIFE
(50-150RPM, 75-239RPM, 100-310RPM, 160-490RPM)
• DEPTH OF CUT UP TO 110MM FOR EXTRA LONG CUTTERS / DEEP DRILLING
• REVERSIBLE DRIVE SUITABLE FOR TAPPING APPLICATIONS
• OIL BATH GEARBOX DESIGNED FOR CONTINUOUS CUTTING
• 3 COIL MAGNETIC ADHESION FOR INDUSTRIAL STRENGTH APPLICATIONS
• HEIGHT ADJUSTABLE SLIDE - ALLOWS AJUSTMENT FOR USING STANDARD TWIST DRILLS IN ADAPTER CHUCK
• MT3 ARBOR FOR FLEXIBILITY WHEN CHANGING BETWEEN DRILLING & TAPPING APPLICATIONS
• ADJUSTABLE MAGNETIC BASE FOR FLEXIBILITY IN DIFFICULT ACCESS SITUATIONS
• SPRING LOADED GUIDE FOR SMOOTH EASY OPERATION
• CAPACITY TO DRILL HOLES UP TO 80MM DIAMETER, 110MM DEEP
SPECIFICATIONS:
• Arbor: Morse Taper 3
• Broach Drill Cutter Size: 12mm to 100mm
• Cutting Depth: 110mm
• Twist Drill Capacity: up to 32mm with QR Chuck MT3 DIN 345 Direct
• Countersinking / Counterboring: 10 - 55mm
• Tapping Capacity: Up to M30 with attachment / chuck
• Power: 2500W
• Stroke: 245mm
• Height Adjustment: 116mm
• Magnetic Force: 4,000N/20,000N
• Magnetic Base: 92x238mm, 30° adjustable right and left, 10mm front and back
• Weight: 28.0KG
• Manufactured in Germany
