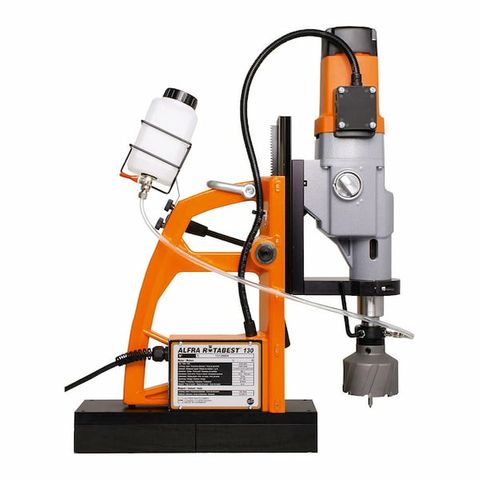

EM130 MAG BASED DRILL

EM130 MAG BASED DRILL
  • EM130 MAG BASED DRILL
    • EM130 MAG BASED DRILL
    • EM130 MAG BASED DRILL
    • EM130 MAG BASED DRILL
    Application:
    In-Situ Drilling of Mild, Stainless and Hardened Steels
    Specifications:
    Magnetic Based Drill, Holes up to 120mm Diameter, 110mm Deep
    Stock Code:
    18645
    $9,387.00 (ex GST)

    FEATURES:
    • FOUR SPEED VARIABLE GEARBOX FOR OPTIMUM CUTTER LIFE
    (50-150RPM, 75-239RPM, 100-310RPM, 160-490RPM)
    • CAPACITY TO DRILL UP TO 130M HOLES, 45MM TWIST DRILL CAPACITY
    • 6 COIL MPI 32,000N MAGNETIC ADHESION FOR HIGH STRENGTH INDUSTRIAL USE
    • MT4 ARBOR FOR FLEXIBILITY WHEN CHANGING BETWEEN DRILLING ATTACHMENTS
    • CAPACITY TO DRILL HOLES UP TO 130MM DIAMETER


    SPECIFICATIONS:
    • Arbor: Morse Taper 4
    • Broach Drill Cutter Size: 12mm to 120mm / 20mm to 50mm (extra long 110mm cutters)
    • Cutting Depth: 50mm / 110mm
    • Twist Drill Capacity: up to 45mm with MT4 DIN 345 Direct
    • Countersinking / Counterboring: 10 - 80mm
    • Tapping Capacity: Up to M42 with attachment
    • Power: 2500W
    • Stroke: 230mm
    • Height Adjustment: 100mm
    • Magnetic Force: 5,000N/33,000N
    • Magnetic Base: 92x400mm
    • Weight: 34.0KG
    • Manufactured in Germany
