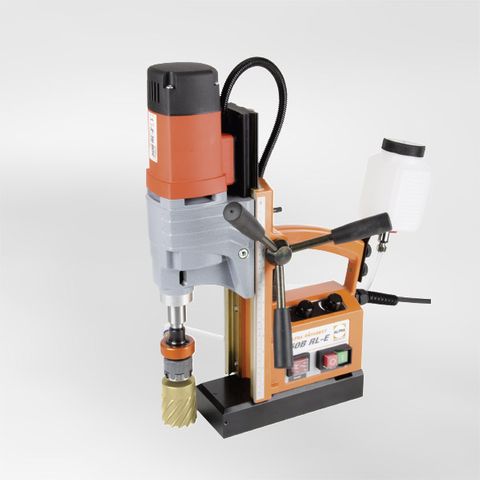

EXC 50 RL-E MAG BASED DRILL

EXC  50 RL-E MAG BASED DRILL
  • 50 RL-E MAG BASED DRILL
    Application:
    In-Situ Drilling and Tapping of Mild, Stainless and Hardened Steels
    Specifications:
    Magnetic Based Drill, Holes up to 50mm Diameter, 50mm Deep
    Stock Code:
    18611
    $5,216.40 (ex GST)

    FEATURES:
    • TWO SPEED VARIABLE DRIVE GEARBOX (100-250RPM & 180-450RPM), MINIMISING HEAT & OPTIMISING CUTTER LIFE
    • REVERSIBLE DRIVE SUITABLE FOR TAPPING APPLICATIONS
    • OIL BATH GEARBOX DESIGNED FOR CONTINUOUS CUTTING
    • HEIGHT ADJUSTABLE SLIDE - ALLOWS AJUSTMENT FOR USING STANDARD TWIST DRILLS IN ADAPTER CHUCK
    • MT2 ARBOR FOR FLEXIBILITY WITH CHUCKS & ADAPTORS
    • SPRING LOADED GUIDE FOR SMOOTH EASY OPERATION
    • CAPACITY TO DRILL HOLES UP TO 50MM DIAMETER, 50MM DEEP


    SPECIFICATIONS:
    • Arbor: Morse Taper 2
    • Broach Drill Cutter Size: 12mm to 50mm
    • Cutting Depth: 50mm
    • Twist Drill Capacity: up to 20mm with QR Chuck MT3 DIN 345 Direct
    • Countersinking / Counterboring: 10 - 40mm
    • Power: 1200W
    • Stroke: 170mm
    • Height Adjustment: 100mm
    • Magnetic Force: 3,800N/16,000N
    • Weight: 16KG
    • Manufactured in Germany
